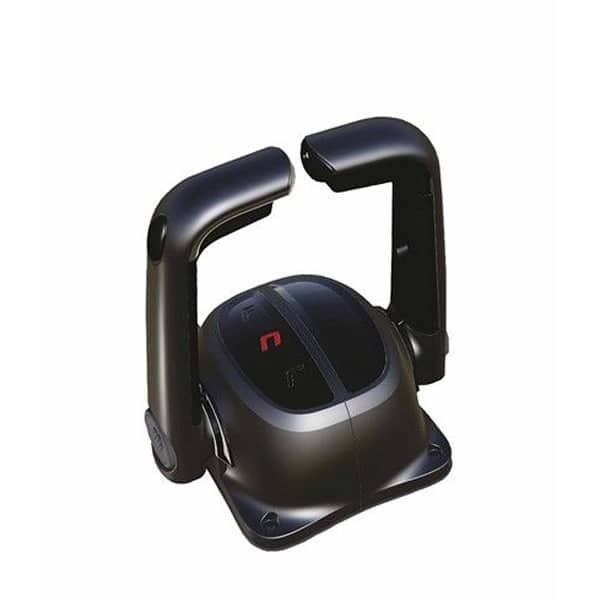

Uflex Twin lever Top Mount Controller


Item Number: B502B/L

Manufacturer: Uflex USA, Inc.

Manufacturer Part No: B502B/L


Uflex Twin Lever Top Mount Control w/Neutral Lock – No Trim Switch – Black – B502B/L

Twin Lever Top Mount Control w/Neutral Lock – No Trim Switch – Black

In the twin engine installation a single switch will operate both trims. With a focus on efficiency these controls have been specifically designed to improve the functionality of control systems, making the boat easier to control. Single lever / dual action control to operate both with throttle and shift. Suitable for any type of boats with outboard, inboard or I/O power plants.


  • Enables easy and safe shifting by preventing accidental gear engagement unless engine is idling
  • Chrome plated high resistance ABS housing control with die cast chrome plated levers
  • Push in button disengages shift for warm-up
  • X12 neutral safety switch which prevents in-gear starting (optional)
  • Exceeds EN ISO 11547 standards when X12 safety switch is installed

For use with all Ultraflex control cables except C4:

  • C14 and MACH14 cables require no kit
  • for C2, C8 and MACHZero cables the connection kit K59 – 40144C is included
  • C5, C16 and MACH5 cables require K60 Kit – 40145E
  • C36 and MACH36 cables require K62 Kit – 40157J
  • C22 cable requires K61 Kit – 40146G

Additional information

Weight 14.96 lbs
Dimensions 18 × 9 × 7.75 in
